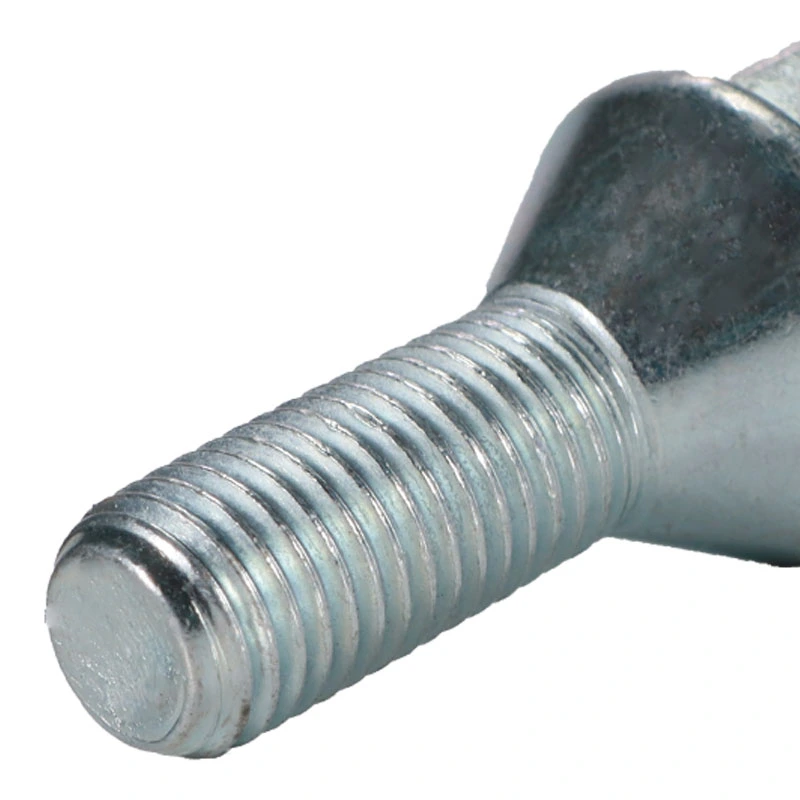

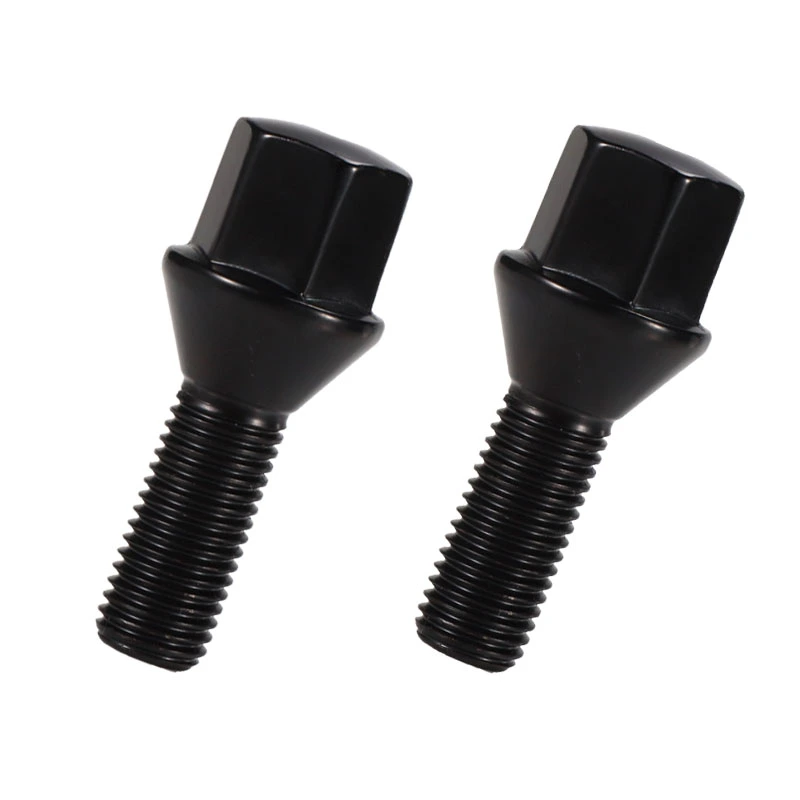

The M12x1.25 Conical Seat Wheel Lug Bolts are critical fastening components for automotive wheel hub assemblies. Their 60° conical seat design enables precise centering and friction-locked connections that effectively transmit traction, braking, and lateral forces during vehicle operation.
Compatible with most passenger cars and light commercial vehicles—including popular sedan, SUV, and light truck platforms—these bolts deliver functional reliability with precision manufacturing. Every set of M12x1.25 Conical Seat Wheel Lug Bolts is held to strict dimensional and mechanical standards, ensuring consistent performance under dynamic load conditions.
|
Parameter |
Specification |
|
Product Name |
M12x1.25 Conical Seat Wheel Lug Bolts |
|
Nominal Diameter |
12mm (M12) |
|
Thread Pitch |
1.25mm (Metric Fine) |
|
Length Range |
16mm – 50mm (Standard stock: 20, 25, 30, 35, 40, 45mm) |
|
Strength Grades |
8.8 / 10.9 / 12.9 |
|
Surface Finishes |
Electroplating (Zinc) / Hot-Dip Galvanizing / Phosphating |
|
Base Material |
High-Quality Alloy Steel (40Cr / SCM435 equivalents) |
|
Seat Angle |
60° Conical (Industry Standard) |
|
Thread Standard |
Metric Fine Thread (DIN / ISO equivalents) |
The 12mm diameter is an industry-standard specification for passenger vehicle hub attachments. This dimension provides an optimal balance between structural load capacity and packaging constraints, delivering reliable preload force for most sedan and compact SUV applications.

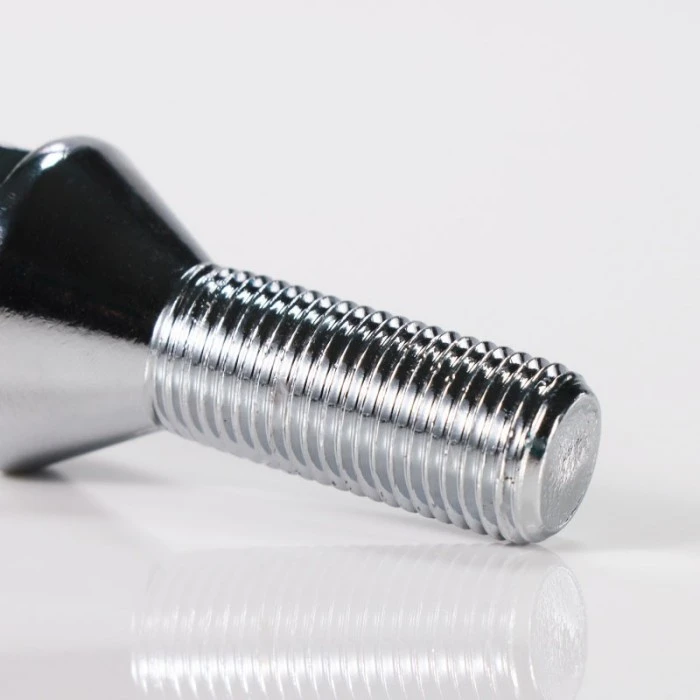

Utilizing a 1.25mm fine pitch enhances the bolt's self-locking characteristics relative to coarse thread alternatives. This design significantly reduces the risk of vibration-induced loosening in high-frequency driving environments, improving the overall integrity of the wheel fastening system. The fine pitch also allows for more precise torque control during installation.
Effective thread engagement is critical for clamp load accuracy. J&W Auto Parts maintains standard stock in 20mm, 25mm, 30mm, 35mm, 40mm, and 45mm lengths for immediate shipment. Custom lengths outside this range are available upon request to ensure proper thread protrusion and flush mounting with the wheel flange—preventing insufficient clamp force (short bolts) or mechanical interference (long bolts).

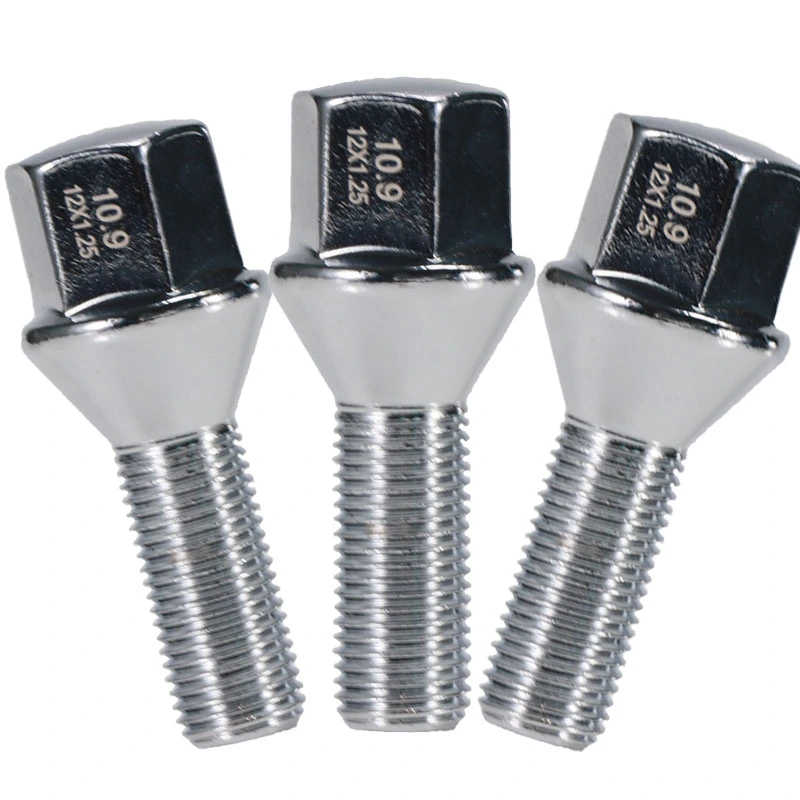

We offer multiple strength classes to match varying load requirements. Higher grades (10.9 and 12.9) provide increased tensile and yield strength through precise heat treatment processes. This allows the bolt to withstand high dynamic stresses in both standard vehicles and performance-modified setups.
Recommended Torque Values (Reference Only – Final Values Depend on Specific Hub/Mating Conditions):
|
Grade |
Recommended Torque (Nm) |
Typical Application |
|
8.8 |
90 – 110 Nm |
Standard passenger cars, compact sedans |
|
10.9 |
120 – 140 Nm |
SUVs, light trucks, heavier curb weights |
|
12.9 |
140 – 165 Nm |
High-performance vehicles, track use, heavy-load commercial |
Note: Torque values are for dry threads. Lubricated threads may require 15–20% reduction. Always verify with your vehicle manufacturer's specifications.
Compared to standard carbon steel, our selected alloy steel offers superior fatigue strength and impact toughness. The specific material composition (equivalent to 40Cr and SCM435 grades) ensures the M12x1.25 Conical Seat Wheel Lug Bolts resist plastic deformation and fracture under long-term cyclic loading, maintaining joint integrity over the vehicle's lifespan. Full material test certificates are available upon request.
Proper torque application is critical to achieving the designed clamp load. Over-torquing can yield bolt stretch or thread stripping; under-torquing can result in insufficient clamping and potential loosening. We recommend using a calibrated torque wrench and following a star-pattern tightening sequence for even load distribution across all bolts on the wheel hub.
The 60° conical seat is a standard wheel interface design that provides self-centering, ensuring a tight connection between the wheel hub and vehicle body for safe driving.
M12x1.25 Conical Seat Wheel Lug Bolts is commonly found on Nissan, Subaru, and some European models. Please confirm your original bolt specifications before purchasing, as thread sizes vary by vehicle.
Standard lengths range from 16-50mm, with custom options available. Insufficient length reduces clamping force; excessive length may damage components. Measure your original bolt length or consult us.

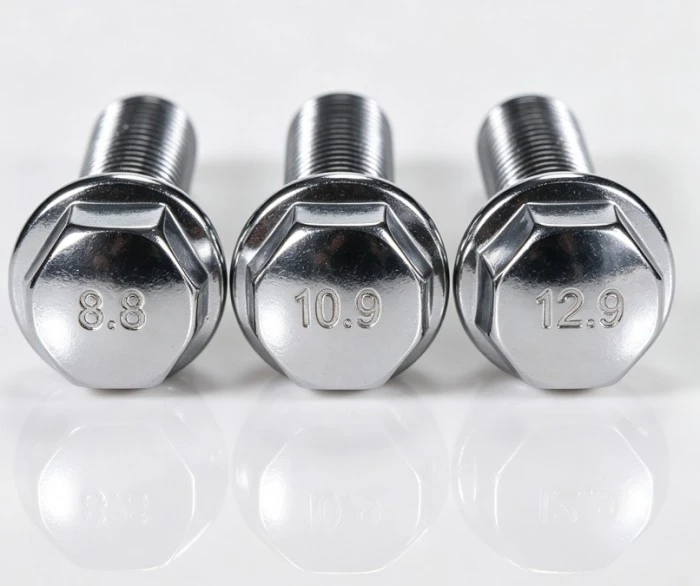

Available in 8.8, 10.9, and 12.9 grades. Higher grades offer greater strength—12.9 is recommended for high-performance and modified vehicles.
We offer zinc plating (basic rust protection), Dacromet (salt spray resistance), and phosphating (wear resistance). Choose based on your operating environment.

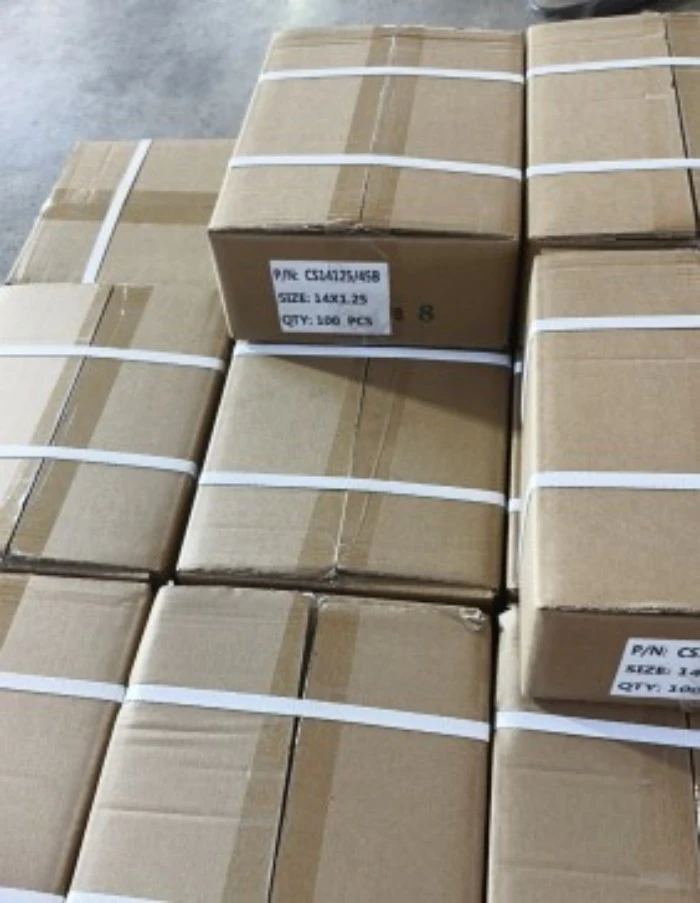

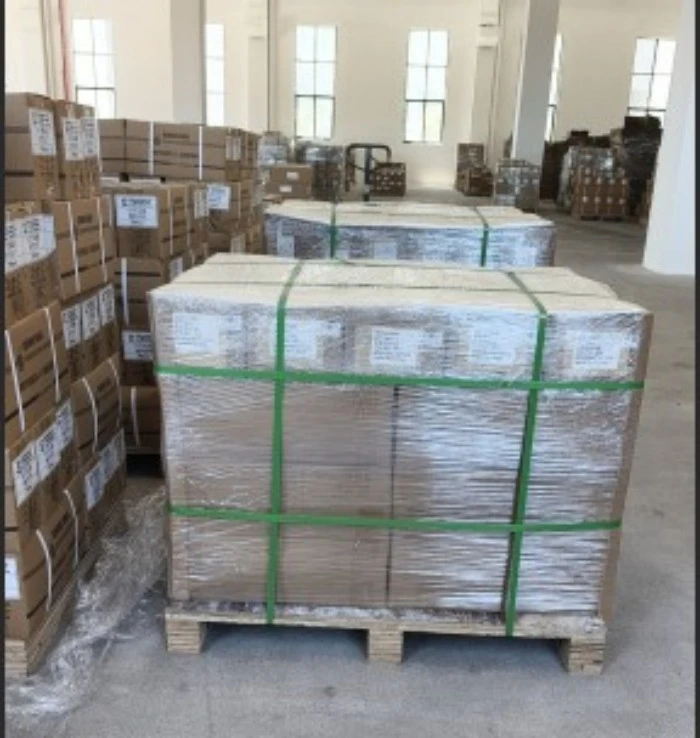

J&W implements full-process quality control from raw materials to finished products, using advanced equipment and SPC for real-time monitoring. Finished products pass fatigue and salt spray tests to ensure durability and reliability.
Re-torque all bolts after approximately 100 km of driving as a safety check.
|
Factor |
What We Deliver |
|
Experience |
15+ years focused exclusively on automotive fasteners |
|
Quality |
IATF 16949 certified with full in-house testing capabilities |
|
Flexibility |
Custom lengths, finishes, and packaging with low MOQ support |
|
Traceability |
Full batch traceability from raw material to finished goods |
|
Responsiveness |
Dedicated technical support for pre-sales and post-sales inquiries |
|
Global Track Record |
Exported to 30+ countries across North America, Europe, and Asia-Pacific |
Ready to Secure Your Supply of M12x1.25 Conical Seat Wheel Lug Bolts?
Get a Quote in 24 Hours – Free Samples Available for Stock Sizes
Contact J&W Auto Parts today for:
Bulk pricing and volume discounts
Custom length and finish solutions
Free technical consultation for grade selection
Expedited shipping options for urgent orders
