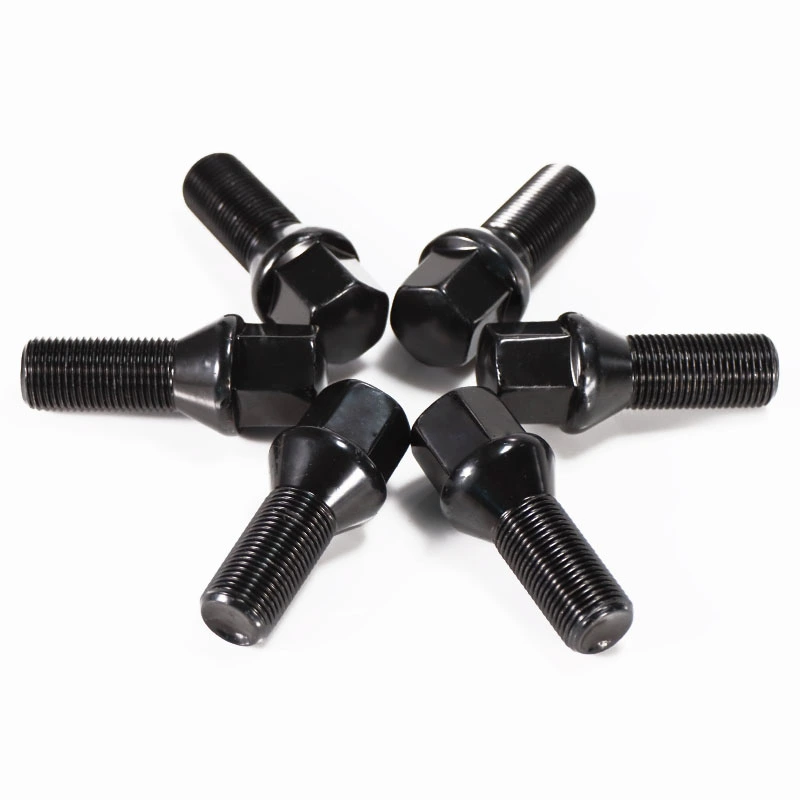

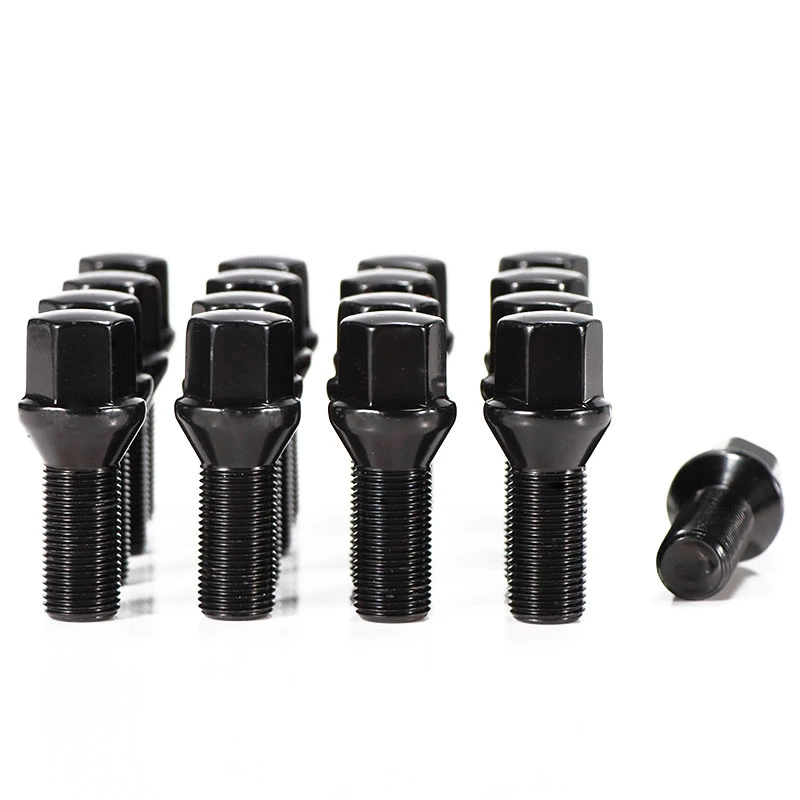

M14x1.5 Conical Seat Wheel Lug Bolts

With 20 years of experience in the R&D, manufacturing, and sales of automotive wheel components, J&W Auto Parts utilizes alloy steel to produce M14x1.5 conical seat wheel lug bolts. These bolts feature precision-matched threads and a conical seat design that creates a stable contact surface, ensuring enhanced stability during high-speed driving.

Core Structure and Functions

The m14x1.5 wheel conical seat locking hub bolts consists primarily of the following four components:

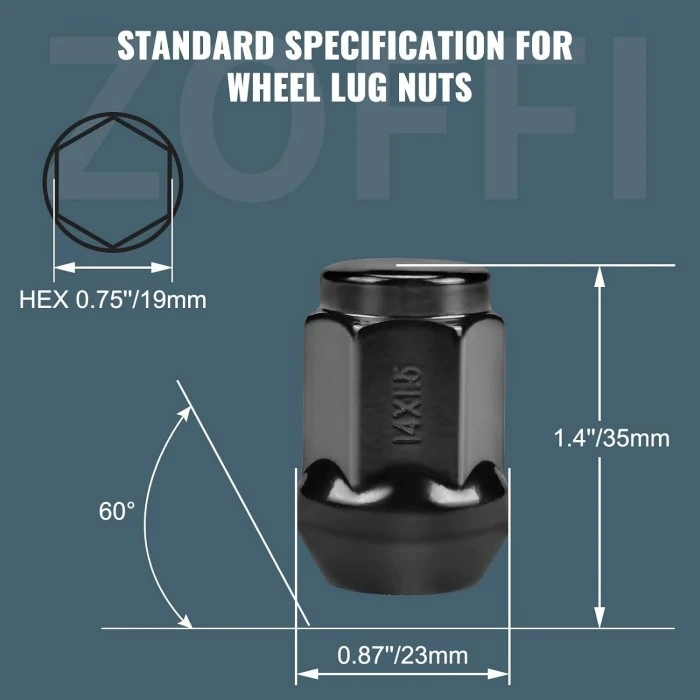

1. Bolt Head: A 17mm or 19mm hex head designed for tightening with a wrench or socket.

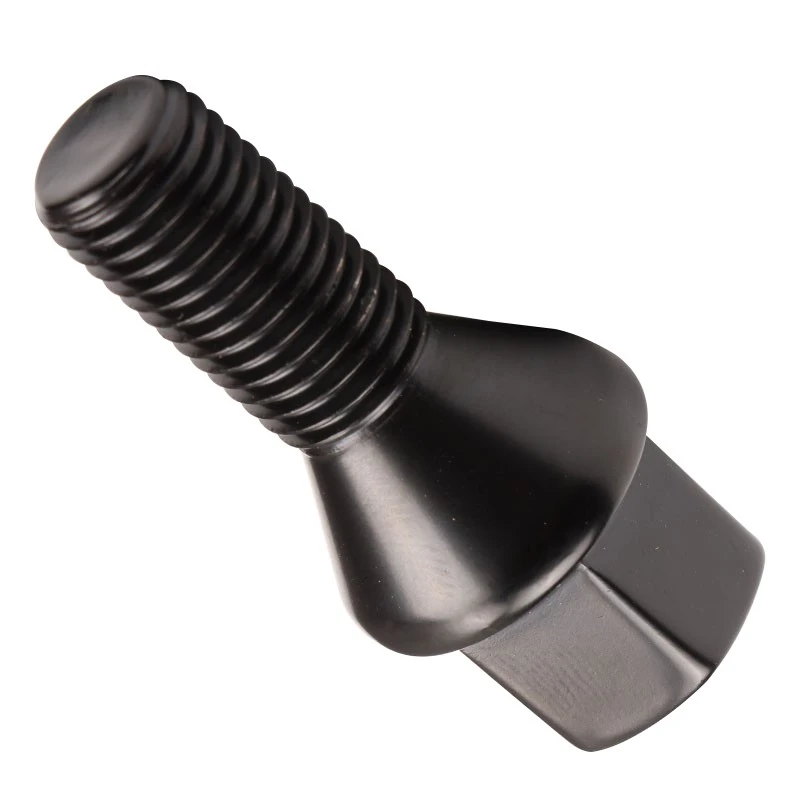

2. Conical Seat: Features a 60° cone angle, the standard seat design for European vehicles. During installation, the conical surface mates precisely with the corresponding seat in the wheel hub, automatically centering the wheel to prevent misalignment and high-speed vibration.

3. Threaded Shank: M14×1.5 fine-pitch threads that screw into the threaded holes of the axle flange, providing strong clamping force.

4. Shank Diameter & Length: The shank diameter is 14mm, while the length varies depending on the vehicle model and the use of wheel spacers; common lengths include 27mm, 33mm, 40mm, and 50mm.

What Are the Advantages of Our Conical Seat Wheel Lug Bolts?

1. Precision Thread Design

The M14x1.5 threads require a precise match with the vehicle's wheel mounting holes.

J&W Auto Parts utilizes precision thread machining to ensure smooth installation and secure locking, thereby minimizing the risk of thread damage.

2. Conical Seat Positioning Structure

The conical seat is a key design feature of this type of wheel bolt.

During installation, the conical surface of the bolt aligns with the conical area of the wheel mounting hole to form a precise fit.

This facilitates wheel centering, ensures even load distribution, and reduces installation misalignment.

3. High-Strength Materials

To reliably withstand the vehicle's weight, road impacts, and the loads and vibrations generated during braking, we manufacture these bolts using high-strength alloy steel.

The material undergoes cold heading via multi-station cold forging equipment, followed by machining, quenching, and tempering processes. Finally, a surface anti-corrosion treatment is applied, resulting in superior tensile strength, fatigue resistance, and an extended service life.

Product Specifications

Application Scenarios

1. OEM Wheel Replacement and Repair

New wheel lug bolts are required when the original bolts suffer from thread wear, surface corrosion, deformation, damage, or loss.

Suitable for: Vehicle maintenance and servicing, tire service centers, and the automotive repair market.

2. Aftermarket Wheel Upgrades

When vehicle owners upgrade their wheels, the original lug bolts may not meet the installation requirements of the new wheels, necessitating a selection based on the new wheels' specifications.

M14x1.5 Conical Seat Wheel Lug Bolts ensure precise wheel fitment and secure installation.

3. Automotive Aftermarket

Wheel lug bolts are common consumable and replacement parts in the automotive aftermarket. J&W Auto Parts offers stable supply capabilities and supports OEM/ODM customization services.

Suitable for: Auto parts distributors, wheel retailers, modification shops, and automotive repair suppliers.

Vehicle Compatibility Reference Table

Please verify the following before purchasing:

Even if the vehicle make and model match, we recommend confirming:

Thread Size: M14x1.5

Seat Type: 60° Conical Seat

Bolt Length: Confirm based on wheel thickness

Hex Size: 17mm or other specifications

Wheel Type: OEM or aftermarket wheels

If you provide your vehicle model, year, and a photo of the wheels, J&W Auto Parts can assist in confirming the correct fitment.

When Should M14x1.5 Conical Seat Wheel Lug Bolts Be Replaced?

1. Damaged or worn threads

Signs: Thread deformation, visible thread wear, binding or resistance during installation, or inability to tighten properly.

Consequences of not replacing: Insufficient clamping force, loose bolts, and compromised wheel security.

2. Bent or deformed bolts

Signs: Bolt is no longer straight, rotates abnormally, or the wheel does not sit flush after installation.

Causes: Severe impact from potholes, vehicle collisions, or abnormal shocks to the wheel can all cause slight deformation.

3. Severe corrosion or rusting

Signs: Extensive surface rust or significant coating failure.

Causes: Prolonged exposure to rain, road salt, moisture, mud, and grit.

4. After installing aftermarket wheels

Signs: Changes in wheel width, offset (ET value), or design may render the original lug bolts unsuitable.

Check before replacing: Thread specifications, seat type, bolt length, and thread engagement depth. Replace with M14x1.5 conical seat lug bolts if they are compatible.

5. End of service life or signs of fatigue

There is no fixed replacement interval for wheel lug bolts, but periodic inspection is recommended after prolonged use.

Pay special attention to: High-mileage vehicles, heavy-load vehicles, vehicles frequently driven at high speeds, and vehicles used in extreme weather conditions.

Common Installation Issues and Solutions

Installation Precautions and Checklist

▷ Before Installation:

1. Check thread specifications

2. Clean the wheel hub mounting surface

3. Verify seat type compatibility

4. Inspect bolts for damage

▷ During Installation:

1. Pre-tighten by hand before using tools

2. Tighten evenly following the specified sequence

3. Avoid overtightening

▷ After Installation:

1. Check that the wheel is mounted flush

2. Confirm there is no abnormal looseness

3. Re-check according to vehicle requirements

J&W Auto Parts OEM/ODM Services

1. Precision Customization of Specifications and Dimensions

Fastener Threads: Customization options include global standard metric and imperial threads such as M14x1.5, M14x1.25, M12x1.5, and 1/2"-20.

Seat Type Matching: Precision machining for Ball Seat, Conical/Cone Seat (60°), and Flat Seat configurations.

2. Material and Performance Grade Specification

We offer high-standard materials—such as alloy steel, 6061-T6 aluminum alloy, and 7075-T6 aluminum alloy—tailored to your specific application requirements.

Fasteners (including bolts) can be manufactured to meet rigorous high-strength industrial standards, such as Class 10.9 or Class 12.9.

3. Surface Treatment and Aesthetic Finishing

We provide surface treatments including anodizing, premium electroplating, Dacromet coating, and electrophoresis, ensuring products easily pass rigorous salt spray tests lasting 72 hours or longer.

4. Exclusive Brand Identity

Laser Engraving: High-precision laser engraving of your brand logo, specifications, and anti-counterfeiting codes directly onto the product surface.

Custom Packaging: Options for custom-colored outer boxes, blister packaging, labeling, and multilingual instruction manuals.

Our OEM/ODM Partnership Process

To ensure efficient and precise communication, we have established a standardized industrial customization workflow:

[ Requirement Alignment ] ➔ Provide drawings, samples, or design concepts

▼

[ Technical Assessment ] ➔ Engineering team conducts feasibility analysis; preliminary quote provided within 1–2 business days

▼

[ Sample Production ] ➔ Prototype production arranged after mutual agreement (testing samples available upon request)

▼

[ Vehicle Testing ] ➔ Customer performs on-vehicle installation, dynamic balancing, and tensile testing

▼

[ Mass Production ] ➔ Formal contract signed, 30% deposit paid, and full-scale production launched on automated lines

▼

[ Completion & Delivery ] ➔ Visual production progress updates; final quality inspection; secure shipment upon receipt of the balance payment

Why Choose J&W Auto Parts?

● Advanced Equipment Array

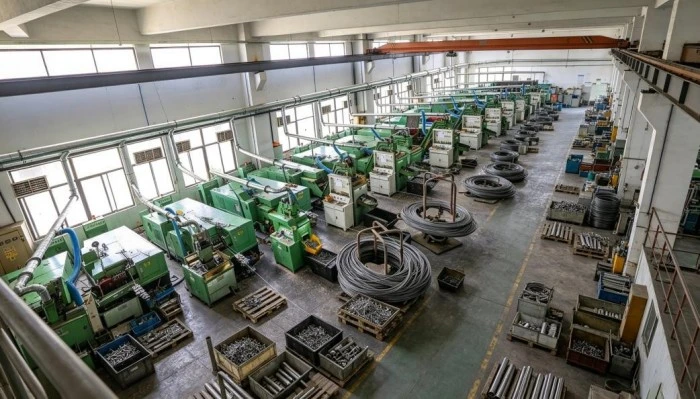

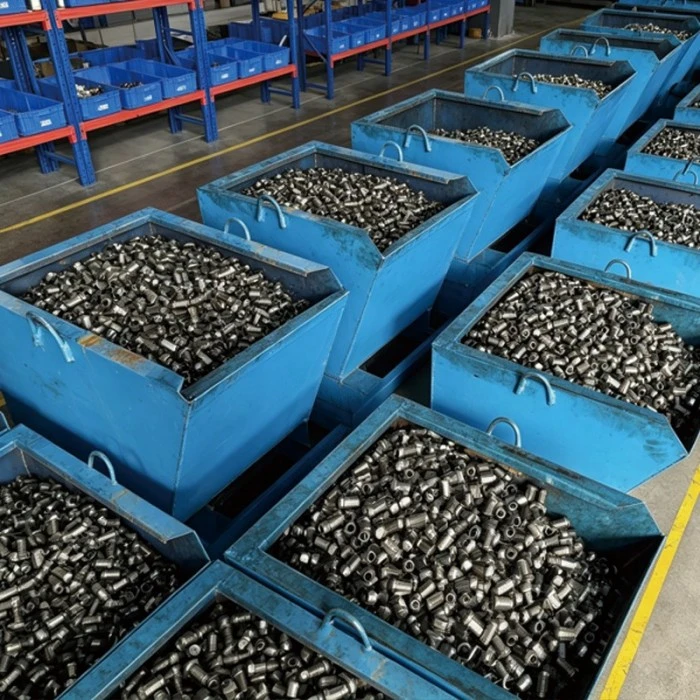

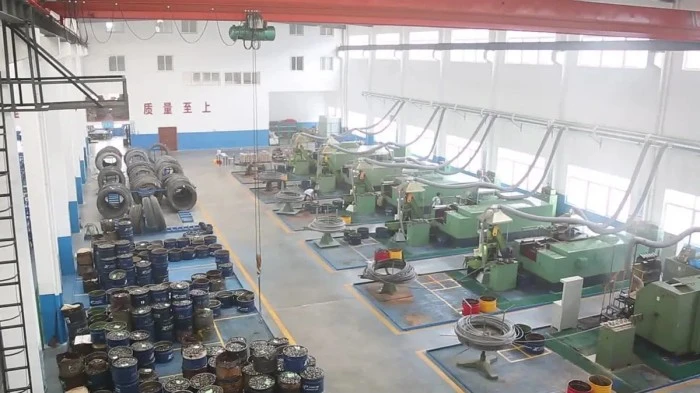

Our factory spans over 6,600 square meters (10 mu) and is equipped with 12 large cold-heading machines, over 20 high-precision CNC machining centers, and 2 large stamping presses. This infrastructure enables micron-level geometric tolerance control and ensures high consistency in mass production.

● In-House Automated Electroplating Line

We operate our own automated electroplating line, allowing us to independently control surface treatment quality and delivery schedules while effectively minimizing the quality risks associated with outsourcing.

● Rigorous 5S Quality Control System

We implement 5S management throughout the entire process—from raw material intake (involving spectral analysis and tensile testing) to finished product verification (including 72-hour anti-corrosion salt spray tests and hardness testing). On-site management.

● Flexible MOQ

We set reasonable minimum order quantities for products requiring new custom tooling.

For standard specifications within our established product lines or items with existing stock, we also accommodate low-volume trial orders.

FAQ

Q1: What is the difference between a Conical Seat and a Ball Seat?

A: The main difference lies in the shape of the contact surface between the bolt and the wheel hub.

The two types of seats are not interchangeable.

Using the incorrect seat type may result in insufficient contact area, inaccurate wheel hub positioning, and reduced locking effectiveness.

Q2: How do I choose the correct length for wheel lug bolts?

A: The bolt length must be determined based on actual installation conditions.

Key factors to consider include: the thickness of the original wheel hub; the thickness of the aftermarket wheel; whether a wheel spacer is being installed; and the effective thread engagement length.

Bolts that are too short may result in insufficient thread engagement and inadequate clamping force.

Bolts that are too long may interfere with internal vehicle components and impede normal rotation.

Q3: What tools are required to install M14x1.5 wheel lug bolts?

A: You will need a correctly sized socket, a torque wrench, and professional tire removal/installation tools.

Recommendations:

1. Avoid using mismatched tools to prevent damage to the bolt head;

2. Install using the torque specifications recommended by the vehicle manufacturer;

3. Avoid overtightening.

Q4: What surface finish options are available for M14x1.5 conical seat wheel lug bolts?

A: Depending on specific market demands, we offer:

J&W Auto Parts offers various surface treatment solutions tailored to the customer's target market, vehicle operating environment, and aesthetic requirements, helping them select the most suitable wheel lug bolts.
