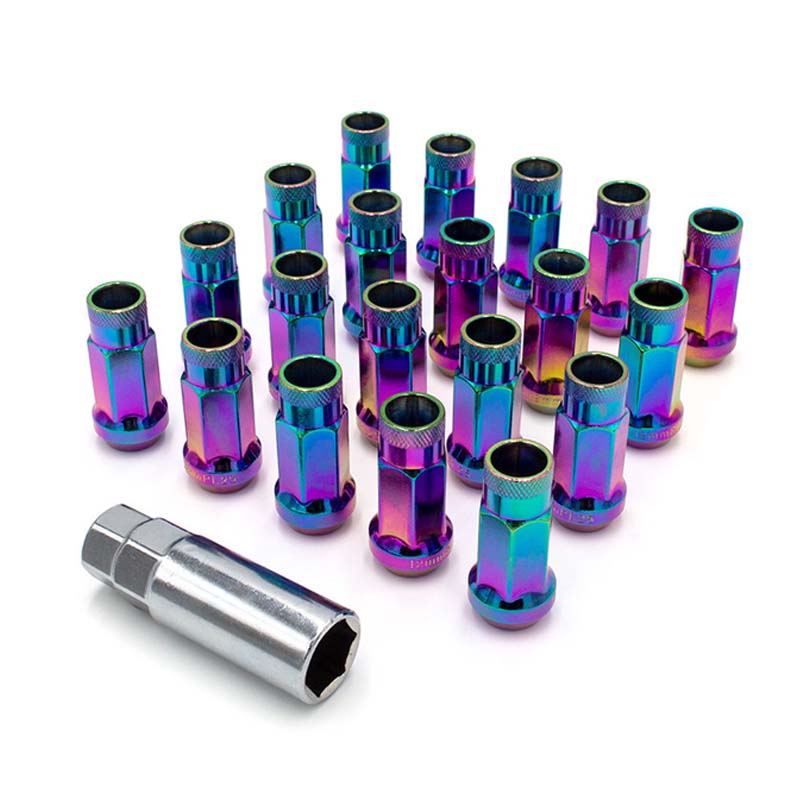

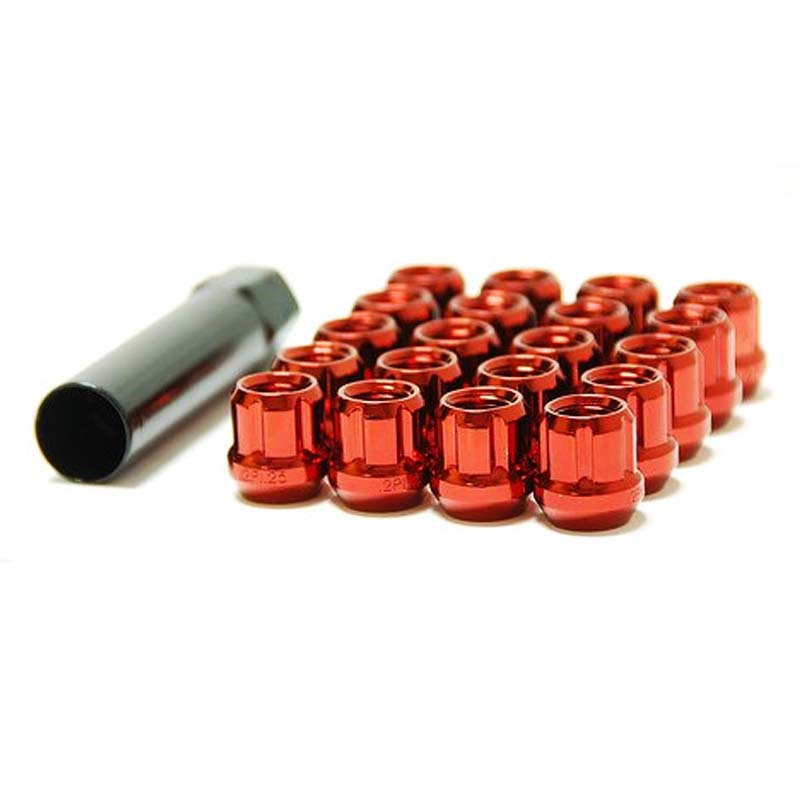

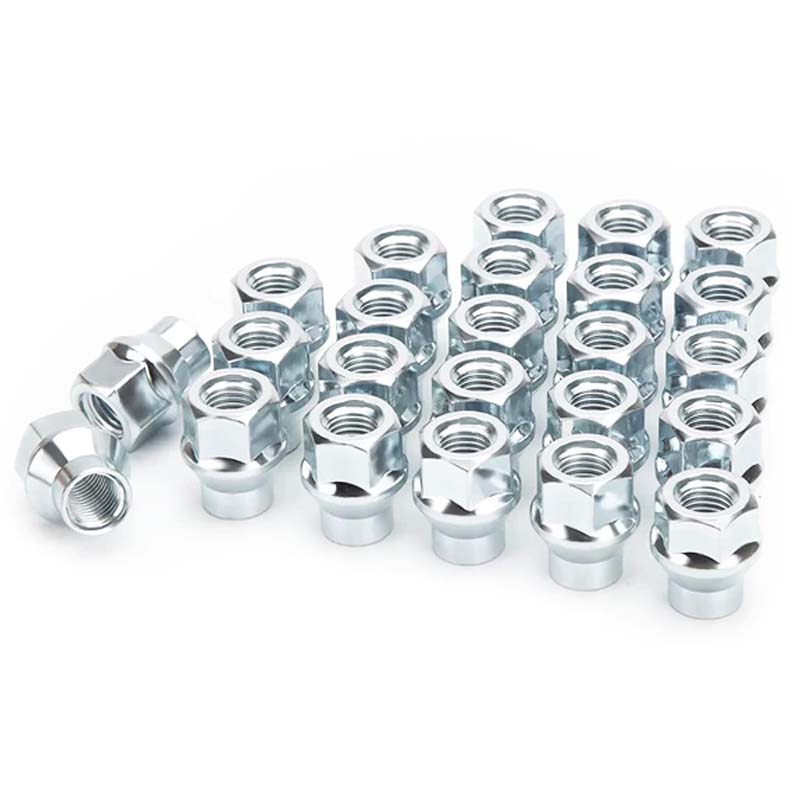

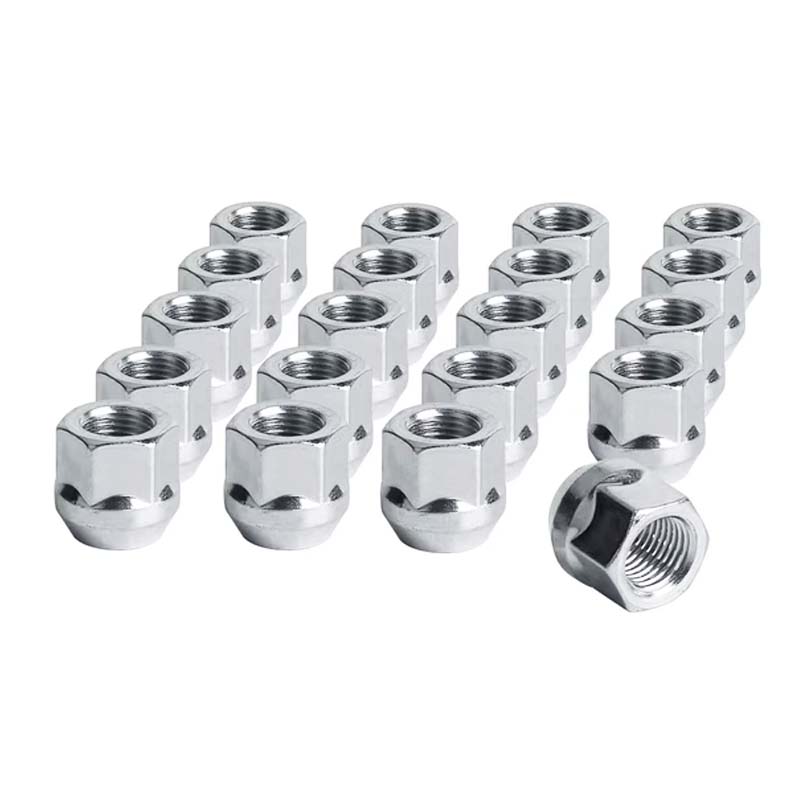

M12x1.5 Open End Wheel Lug Nuts

M12x1.5 Open End Wheel Lug Nuts are designed to solve a common problem found on track cars and high-performance vehicles. Standard closed-end lug nuts can bottom out on extended wheel studs, preventing proper torque from being applied. The open-end design allows the stud to pass completely through the nut, ensuring full thread engagement regardless of stud length. Combined with a precision 60-degree conical seat, these lug nuts deliver consistent clamping force to keep the wheel securely centered while reducing the risk of hub movement and chassis stress during aggressive acceleration, braking, and cornering.

Technical Specifications

Key Features & Benefits

Through-Hole Design for Unlimited Stud Fitment

Our open-end configuration allows extended racing studs to pass completely through the nut body. This eliminates the risk of bottoming out and ensures full thread engagement regardless of stud length — a critical requirement for vehicles with spacers or track-oriented hub setups.

Forged 50BV30 Steel for High Impact Resistance

Manufactured from premium 50BV30 or SCM435 alloy steel, these fasteners undergo controlled heat treatment to achieve a balanced 33-38 HRC hardness. This prevents thread stripping under high torque while resisting shearing from sudden impact loads.

Precision Rolled Threads for Consistent Clamping

Our hydraulic thread rolling process maintains continuous grain flow within the steel fibers, resulting in smoother thread surfaces and tighter meshing fit. This design helps maintain consistent clamping force under high-speed chassis vibration.

Visual Thread Engagement Verification

The through-hole design provides race technicians and fleet mechanics with clear visual confirmation of thread depth. This eliminates guesswork during tire service and ensures every wheel is properly secured before track sessions or highway driving.

Why Choose Open-End Design

Closed-end nuts have a hidden bottom. If the stud is too long, it bottoms out before the nut is fully seated against the wheel hub. The installer might reach the correct wrench torque value, but the wheel remains loose.

Our open-end design solves this by allowing visual verification of thread engagement. The stud passes directly through the nut body, letting race technicians and fleet mechanics verify the exact thread depth. This design also lowers unsprung weight and improves hub cooling dynamics.

Material & Surface Technology

· Selected 50BV30 & SCM435 Alloys: We use premium raw alloy wire rods. Controlled heat treatment achieves a balanced 33-38 HRC hardness, preventing thread stripping and sudden shearing.

· Three-Layer Plating Process: Our electroplating line applies a copper base, a nickel layer, and a topcoat (black chrome, zinc plating, or electrophoresis). This approach survives a certified 72-hour salt spray test without peeling.

· Field-Backed Experience: We have produced wheel fasteners and accessories for international customers for many years. Based on field feedback, using virgin alloy steel and stable plating thickness significantly improves product durability compared with low-grade recycled materials.

Production Process & Quality Control

Our workshop operates under strict 5S management. Here is how your order moves through our factory floors:

Raw Material Inspection ➔ Cold Heading Forging ➔ CNC Precision Machining

                                                                ↓

Final Packaging & Shipping ➔ Thread Inspection ➔ Salt Spray & Magnetic Test ➔ Plating Line

1. Raw Material Inspection: We test incoming wire rods for composition and diameter tolerances.

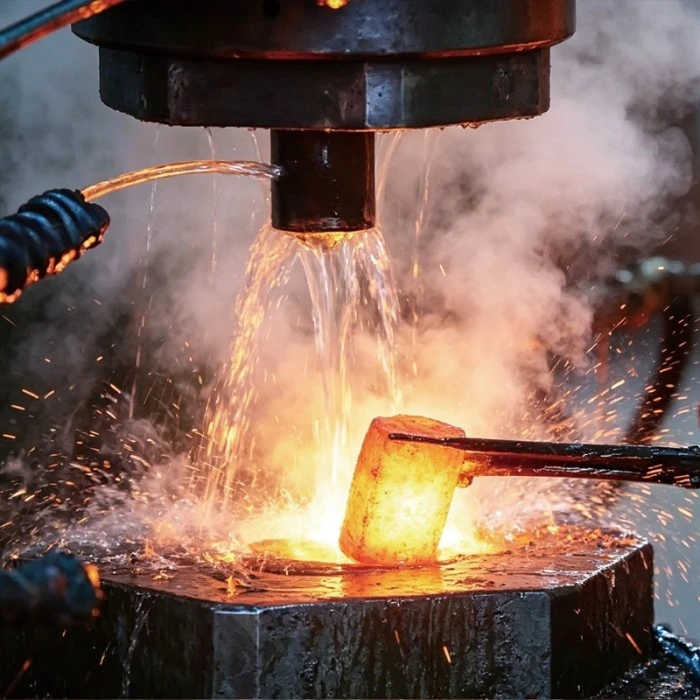

2. Cold Heading Forging: Machinery forms the hexagonal blanks, compacting the grain structure to increase tensile strength.

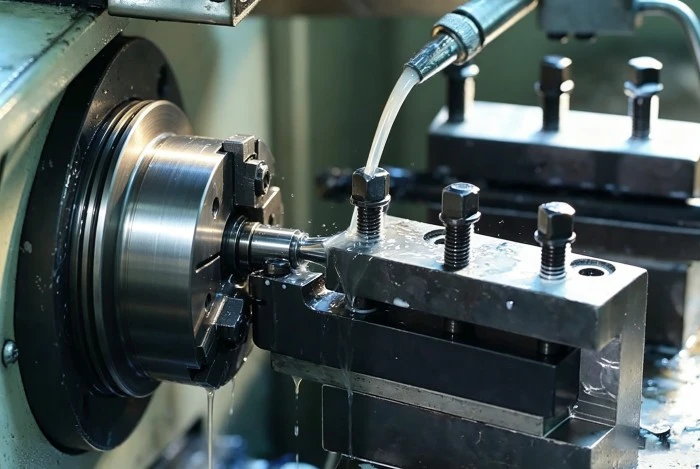

3. CNC Precision Machining: Machining centers cut the 60-degree conical seats and drill the through-hole.

4. Chrome Plating: Parts pass through an automated electroplating production line for a uniform black chrome, zinc layer, or electrophoresis coating.

5. Thread Inspection: Workers test internal threads using thread plug gauges. If a thread is loose, the batch is rejected.

6. Salt Spray Testing: Finished samples undergo 72-hour corrosion chamber testing.

7. Packaging & Shipment: Approved components are packed into master cartons, placed on pallets, and wrapped with stretch film for sea transport from the port.

Open-End vs Closed-End — Why Our Design Wins

Application Industries

Our M12x1.5 Open End Wheel Lug Nuts are widely used in performance tuning, motorsport, and automotive aftermarket applications:

· Performance Tuning Shops: Ideal for aftermarket forged wheels and extended hub adapters.

· Motorsport & Track Teams: Provides rapid thread verification during fast-paced tire service.

· Automotive Aftermarket Wholesalers: Supplies standard inventory for passenger car brands requiring highly reliable thread patterns.

· Specialty Vehicle Builders: Secures custom vehicle configurations, lightweight track day cars, and specialized sports roadsters.

OEM & ODM Customization Process

We help distributors, wholesalers, and private brands create customized retail or commercial product lines:

Production Drawing Confirmation ➔ Sample Approval ➔ Mass Production

· Production Drawing Confirmation: Our engineering team generates detailed 2D/3D blueprints based on your wheel layout before production.

· Sample Approval: We make physical pre-production samples and mail them to your office for fitment and plating quality validation.

· Mass Production: Once you sign off on the sample, our production facility lines deliver a matching batch.

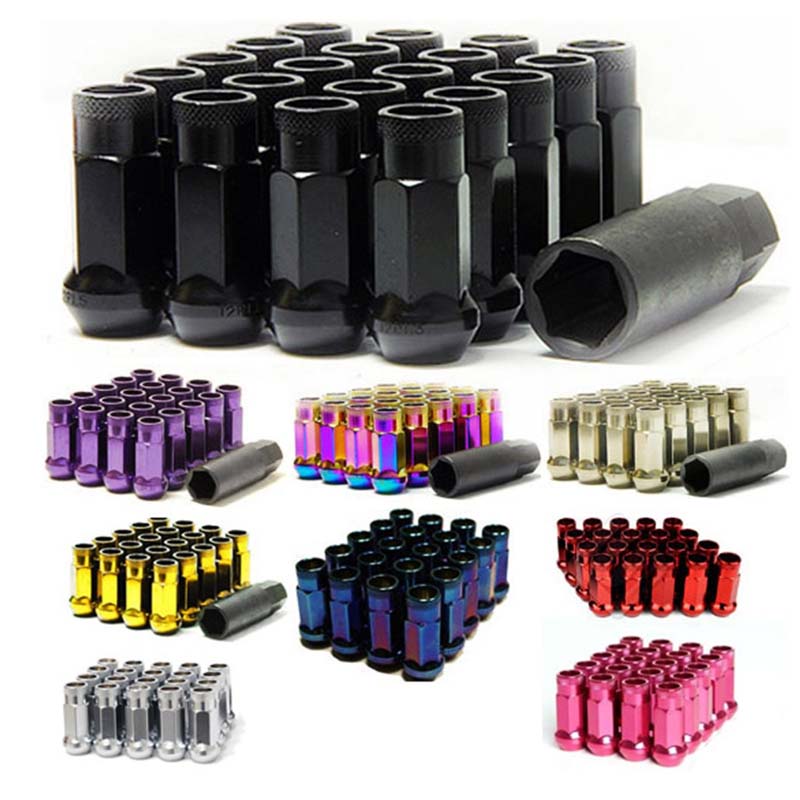

· Custom Finishes: Available in black chrome, zinc plating, gold zinc, or custom laser engraving of corporate brand names on hex flat sides.

Packaging & Logistics

Factory Capacity

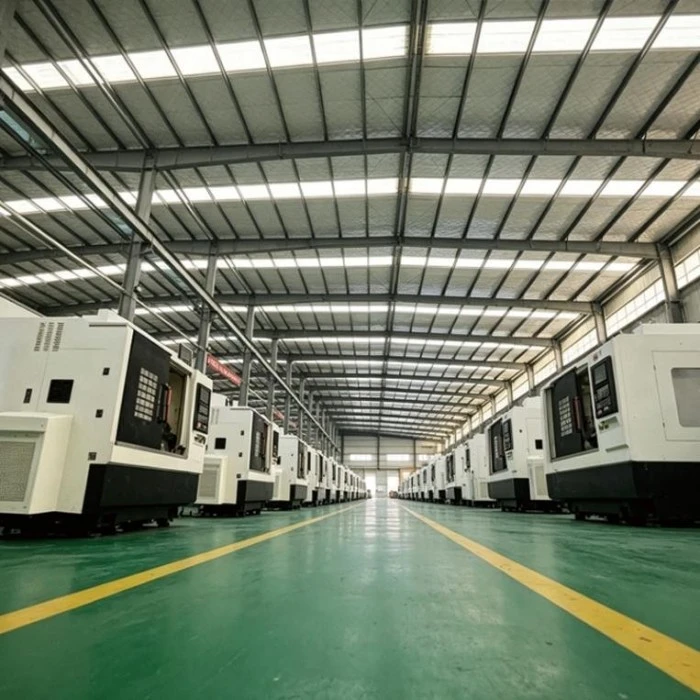

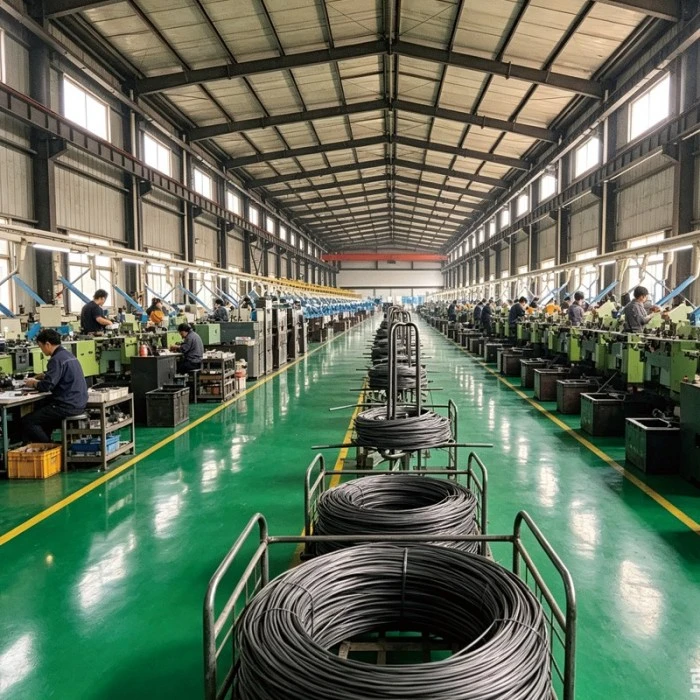

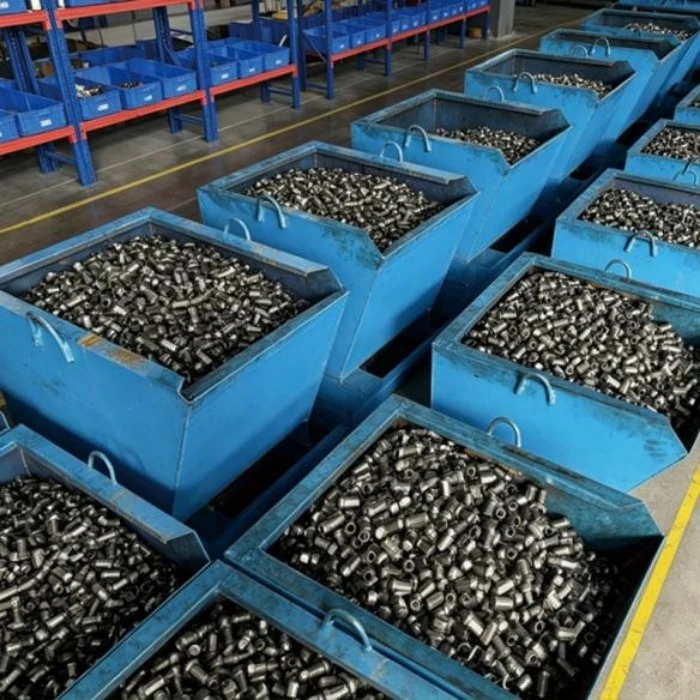

· Our Facility: Our factory is located in Ningbo, Zhejiang, covering more than 10 acres with over 100 experienced workers.

· Machinery Fleet: We operate 12 large cold heading machines, over 20 advanced machining centers, two large stamping machines, and a modern automated electroplating production line.

· Tooling Engineers: Our company has in-house mold designers managing CNC tooling, allowing us to develop new custom shapes or sizes quickly.

· Stable Output: We produce up to 200,000 wheel lug nuts per month, making it easy to fulfill large distributor contracts or urgent fleet orders.

Certifications & Quality Control Statement

While we focus on internal quality controls over external marketing certifications, our standards are rigorous: 100% raw material inspection, hourly in-process thread checks, and mandatory 72-hour salt spray testing on every batch. We let our product performance speak for itself. Every single batch of raw alloy material is verified before forging. Our quality assurance team checks thread tolerances every hour on the floor, and we issue our own internal Material Reports and 72-Hour Salt Spray Testing Logs before any container is sealed for export. If any batch fails our internal inspection standards, it will not be released for shipment. We stand behind our quality.

Buying Guide: How to Source the Right Wheel Lug Nut

Should I choose an Open-End or Closed-End design?

Choose an open-end design if your vehicles use long racing studs, wheel spacers, or tuning hubs where thread visibility and unrestricted bolt passage are required. Closed-end options are preferred for standard daily driven vehicles where complete moisture sealing over the stud tip is requested.

Confirm the Seating Type: Conical vs. Ball Seat

Our standard M12x1.5 nuts utilize a 60-degree conical (taper) seat, which is the standard for most aftermarket forged wheels and brands like Toyota, Honda, and Mazda. Do not install a conical nut onto a wheel designed for a ball (radius) seat, as this reduces the contact surface area and may compromise safety.

Select the Proper Material Grade

For high-performance, track, or commercial passenger fleet vehicles, reject standard carbon steel. Insist on quenched alloy steels like 50BV30 or SCM435, which offer a 33-38 HRC hardness range to handle repeated disassembly torque without thread stretching.

Installation Instructions

1. Inspect Hub Hardware: Ensure the vehicle's male stud threads are clean, dry, and free of dirt, old grease, or burrs.

2. Align Thread Patterns: Align the internal M12x1.5 thread profile with the stud. Manually spin the nut clockwise by hand for at least 3 to 5 full rotations to prevent cross-threading.

3. Torque Sequence: Lower the vehicle to the ground until the tire touches. Use a calibrated manual torque wrench to tighten the nuts in a star (diagonal) pattern according to the vehicle manufacturer’s torque values.

4. No Pneumatic Air Impact Wrenches: Never use heavy pneumatic air impact wrenches to directly drive or tighten alloy lug nuts. Excessive air impact can stretch the steel threads, distort the 60-degree seat alignment, and scratch the premium electroplating surface finish.

Maintenance Tips

· Cleaning Surface Plating: Wash the nuts using standard automotive soap and water. Avoid aggressive acid-based wheel cleaners or alkaline degreasers, which can degrade the electroplated chrome or coating layers over time.

· Regular Torque Inspections: For tracked, tuned, or high-performance sports vehicles, inspect nut seating torque after the first 50 to 100 miles of driving following any wheel removal or tire rotation.

· Storage of Bulk Inventory: Store wholesale backup cartons in a dry, temperature-regulated warehouse area to maintain surface plating luster prior to market distribution.

FAQ

Q1: Which specific car models are compatible with this M12x1.5 nut pattern?

A: Commonly found on various passenger vehicles and aftermarket wheel applications. Always verify thread size, seat type and stud specifications before installation.

Q2: What is the technical difference between a Conical Seat and a Ball Seat?

A: A conical seat features a straight 60-degree angled taper, whereas a ball seat is rounded and curved. They cannot be mixed. Installing a conical nut into a ball-seat wheel pocket reduces the surface contact area to a narrow ring, causing torque loss and potential fastener shearing.

Q3: What is the standard minimum order quantity (MOQ) and lead time for custom batches?

A: For standard chrome M12x1.5 specifications held in our factory warehouse inventory, orders can ship within 7 business days with a flexible trial MOQ. For customized surface colors (like black chrome), laser branding, or large production orders, the manufacturing lead time averages 30 to 40 days.

Q4: Can I order mixed products in one shipping container?

A: Yes. International wholesalers can easily mix these open-end nuts with our core metal products—including wheel fasteners, wheel spacers, and hub centric rings—in a single container to optimize sea freight logistics costs from the Port of Ningbo.

Q5: Can your engineering team provide product drawings before mass production?

A: Yes. For any custom project, contract order, or OEM specification, our company generates and confirms detailed 2D/3D technical schematics with the buyer before we tool any injection or forging molds.

Ready to Source M12x1.5 Open End Wheel Lug Nuts?

Get your factory-direct quote within 12 business hours — free samples available upon request.
