J&W Auto Parts, as an integrated enterprise encompassing R&D, production, and sales, leverages over a decade of manufacturing experience in the automotive fastener field. Its M12x1.5 Locking Conical Seat Wheel Lug Bolts have become one of the best-selling models in European, American, and Asia-Pacific markets. This product is specifically designed for the passenger car market, with specifications precisely matching the original wheel hub installation requirements of European and some Japanese models. From raw material inbound to finished product outbound, each bolt undergoes multiple processes including cold heading, precision machining, and surface treatment, ensuring high standards in assembly precision and driving stability.
The M12×1.5 specification is a common wheel bolt size found on European and some Japanese vehicle models. M12 indicates a nominal thread diameter of 12mm, 1.5 refers to a 1.5mm thread pitch, and the conical seat features the industry-standard 60° tapered contact surface that fits perfectly with most tapered bore wheels. Locking wheel bolts add an anti-theft structural design to standard bolts, making them a common solution for improving wheel security — especially when upgrading to aftermarket or premium wheels, they effectively reduce the risk of wheel theft.

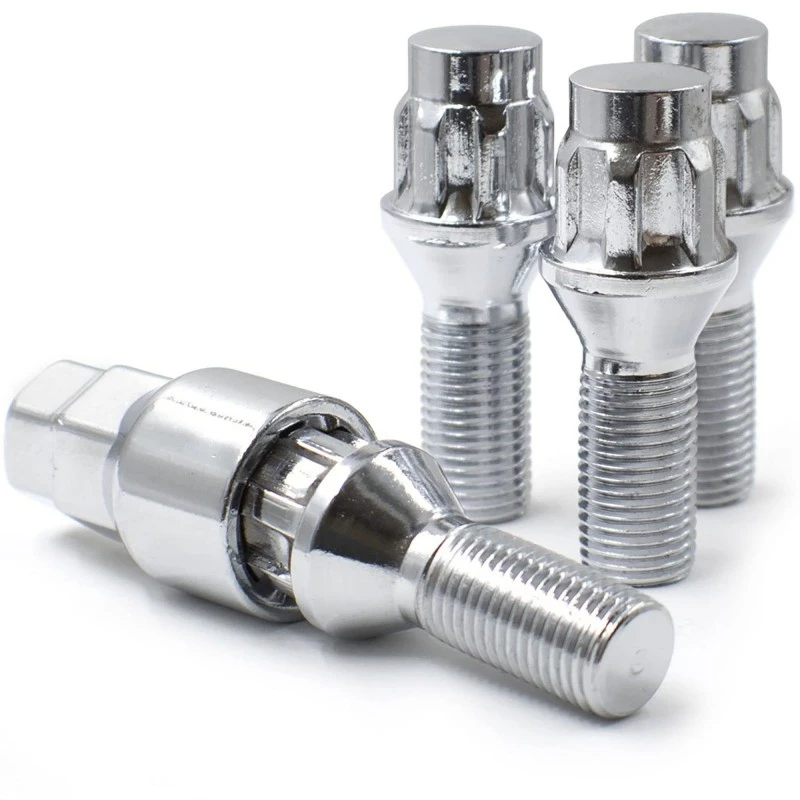

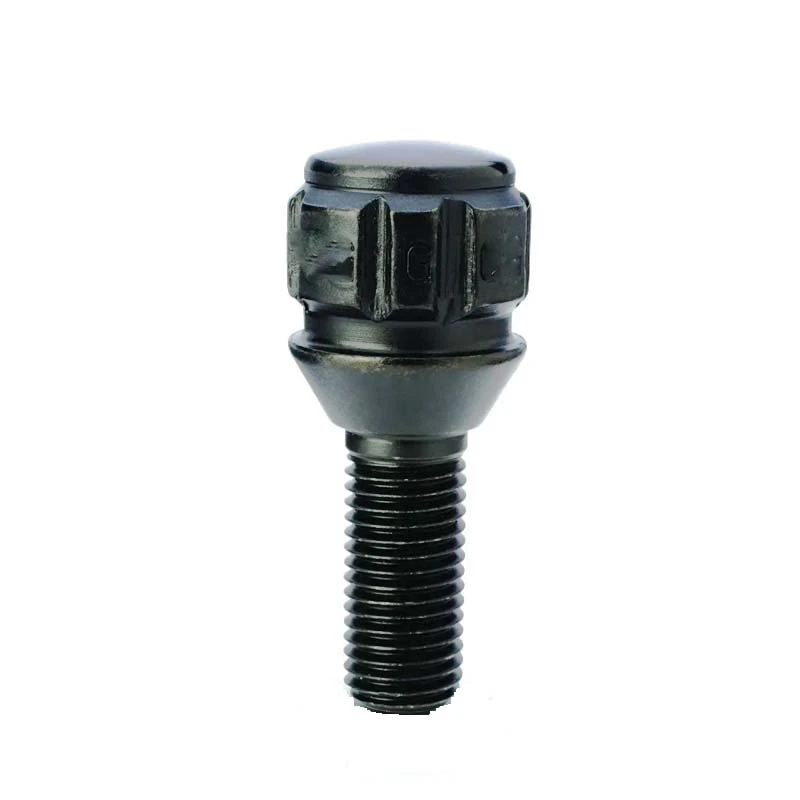

M12x1.5 Locking Conical Seat Wheel Lug Bolts feature three core structural design advantages, balancing anti-theft performance and fastening reliability:
The bolt head features a dedicated special-shaped anti-theft lock design. Both installation and removal require a matching dedicated key socket — ordinary wrenches or universal tools cannot turn it. This effectively reduces the risk of wheel theft, protecting the owner's wheel and tire investment. Each set of locking bolts comes with a dedicated key to ensure security.
The bolt adopts a standard 60° tapered seat structure with high fit to the wheel taper bore. After installation, contact surface force is evenly distributed, effectively reducing stress concentration caused by poor fit, lowering the probability of wheel eccentricity and bolt loosening, and improving driving safety and stability.
The thread section is precisely machined with regular thread profile and accurate dimensions, mating smoothly with original vehicle threaded holes with uniform tightening torque. Precise thread fit ensures fastening reliability while reducing thread wear, extending the service life of both bolts and wheel hub threads.
Proper installation of wheel lug bolts is essential for ensuring wheel safety, fastening stability, and long-term driving reliability. Before installation, customers should confirm key specifications including thread size, seat type, and bolt length to ensure correct fitment.
1. Confirm Thread Specification: Check the thread diameter and pitch before installation. For example, M12x1.5 indicates a 12mm thread diameter and a 1.5mm thread pitch. Matching the correct thread specification helps prevent installation issues and thread damage.
2. Verify Seat Type: Ensure the wheel mounting hole matches the 60° conical seat design. Proper seat contact allows more even load distribution and improves fastening stability during vehicle operation.
3. Select the Correct Bolt Length: Bolt length should be selected according to wheel thickness and installation requirements. The correct length ensures sufficient thread engagement while avoiding interference with internal wheel components.
4. Check Vehicle Compatibility: Before ordering, compare the original wheel bolt specifications or provide vehicle information for fitment confirmation. This helps ensure the selected wheel lug bolts match the vehicle requirements.
Following the correct selection and installation procedures can improve wheel fastening performance, reduce installation errors, and extend the service life of both wheel bolts and wheel hub components. J&W Auto Parts provides technical support to help customers select suitable M12x1.5 Locking Conical Seat Wheel Lug Bolts for different applications.
Different driving environments and performance requirements require different material options. J&W Auto Parts provides carbon steel, stainless steel, and alloy steel solutions for the product, allowing customers to select the most suitable material based on vehicle type, climate conditions, and application requirements.
|
Application Environment |
Recommended Material |
Advantages |
|
Normal passenger vehicles and daily driving |
Carbon Steel |
Carbon steel provides excellent machinability, reliable mechanical strength, and cost efficiency after proper heat treatment and surface coating. It is suitable for standard passenger vehicles and general wheel fastening applications. |
|
High humidity areas, coastal regions, or winter road salt environments |
Stainless Steel |
Stainless steel offers superior corrosion resistance and long-term rust protection. It is ideal for vehicles operating in coastal cities, humid climates, or areas where road salt exposure is common. |
|
Modified vehicles, performance cars, or high-load applications |
Alloy Steel |
Alloy steel provides higher strength and improved load-bearing capability after heat treatment. It is suitable for performance vehicles, aftermarket wheel upgrades, and applications requiring higher tightening torque resistance. |
For most standard passenger cars, M12x1.5 Locking Conical Seat Wheel Lug Bolts made from carbon steel provide a balanced solution between strength and cost.
For vehicles exposed to harsh weather conditions or corrosive environments, stainless steel versions offer enhanced durability and appearance retention.
For modified vehicles or high-performance applications, alloy steel bolts are recommended due to their higher strength, impact resistance, and ability to withstand demanding driving conditions.
|
Feature |
Locking Wheel Bolts |
Standard Wheel Bolts |
|
Anti-theft Protection |
Yes |
No |
|
Security Level |
Higher |
Standard |
|
Installation Tool |
Dedicated key required |
Normal wrench |
|
Application |
Premium wheels, aftermarket wheels |
General wheel installation |
|
Main Benefit |
Wheel theft prevention |
Basic fastening |
The product adopts standardized production processes and strict quality control. All parameters have been precisely designed and verified to ensure stable product performance and strong compatibility. Main technical specifications are as follows:
|
Item |
Specification |
|
Product Name |
M12x1.5 Locking Conical Seat Wheel Lug Bolts |
|
Brand |
J&W Auto Parts |
|
Thread Specification |
M12×1.5 |
|
Seat Type |
60° Conical Seat |
|
Head Type |
Locking Head (with dedicated key) |
|
Material Options |
Carbon Steel / Alloy Steel / Stainless Steel |
|
Surface Treatment |
Electroplated |
|
Compatible Vehicles |
European and some Japanese models |
|
Customization Service |
Length, color, logo, packaging customizable |

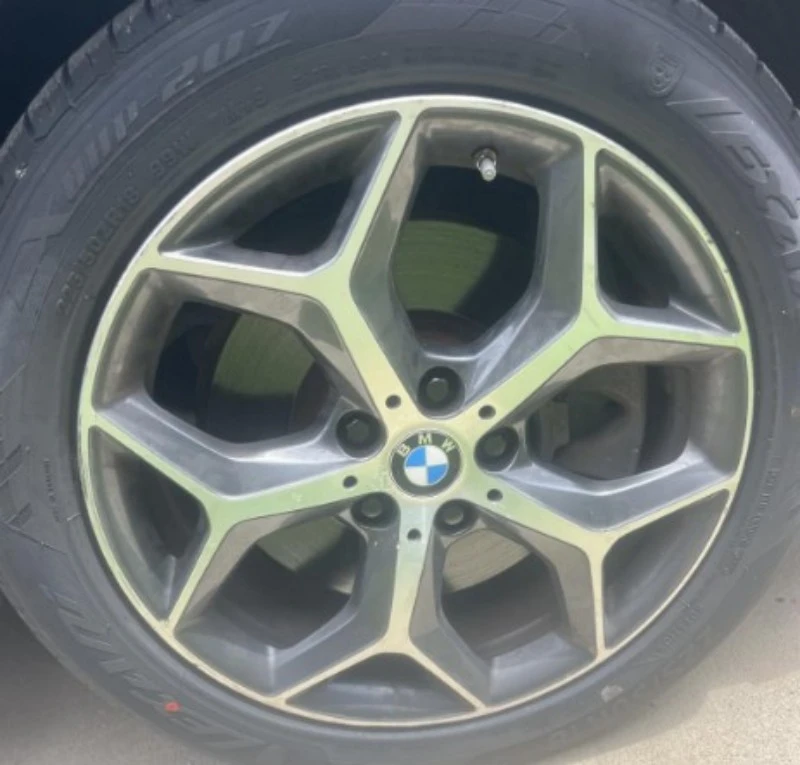

In terms of vehicle compatibility, this specification is commonly found on some European models and aftermarket wheels. Specific fitment should be confirmed against original vehicle specifications. Customers can provide vehicle model information for our sales team to assist with verification. Length and other parameters support custom production to meet installation requirements for wheels of different thicknesses.
As a source factory, J&W Auto Parts not only provides standard specification products but also supports flexible customization services to meet different customers' personalized and branding needs. We also provide professional fitment advice and technical support to help distributors reduce after-sales risks.
1. Size Customization: Custom production of different length specifications to fit wheels of various thicknesses.
2.Appearance Customization: Custom surface color treatment options available.
3.Brand Customization: OEM engraving and packaging customization supported, helping customers build their own brands.
As a professional automotive fastener manufacturer, J&W Auto Parts integrates product design, production, inspection, and delivery management to ensure stable quality and reliable performance of every batch of M12x1.5 Locking Conical Seat Wheel Lug Bolts.
From raw material inspection to final shipment, our production process follows strict quality control procedures covering forming, machining, surface treatment, dimensional inspection, and performance testing.
|
Production Stage |
Process Details |
Quality Control Focus |
|
1. Raw Material Inspection |
High-quality steel materials are selected according to product requirements. Incoming materials are checked before entering production. |
Material composition verification and incoming quality inspection help ensure consistent mechanical properties. |
|
2. Cold Heading Forming |
Advanced cold heading equipment is used to form the basic bolt structure, improving production efficiency and dimensional consistency. |
Key dimensions such as head shape and overall forming accuracy are regularly inspected during production. |
|
3. Precision Thread Machining |
Professional machining equipment ensures accurate M12x1.5 thread dimensions and smooth engagement with vehicle wheel hubs. |
Thread pitch, profile accuracy, and fit performance are inspected to ensure reliable installation. |
|
4. Surface Treatment |
Electroplating and surface finishing processes improve corrosion resistance and maintain product appearance. |
Surface quality and corrosion resistance are verified through appearance inspection and salt spray testing. |
|
5. Performance Testing |
Finished products undergo mechanical performance checks before shipment. |
Torque performance, dimensional accuracy, and corrosion resistance are evaluated to ensure product reliability. |
|
6. Final Inspection & Packaging |
Products are inspected, sorted, and carefully packed according to customer requirements before delivery. |
Final sampling inspection ensures stable quality and reduces potential after-sales issues. |
J&W Auto Parts has established a complete quality management system covering the entire manufacturing process. The factory is equipped with cold heading machines, CNC machining equipment, automatic electroplating production lines, and professional inspection tools to support large-volume production with consistent quality.
· Raw material inspection before production
· Thread accuracy inspection for M12x1.5 specifications
· Torque performance testing
· Salt spray corrosion testing
· Final product sampling inspection before shipment
With more than 20 years of experience in automotive fastener manufacturing, J&W Auto Parts provides OEM and aftermarket customers with stable production capacity, flexible customization options, and professional technical support.

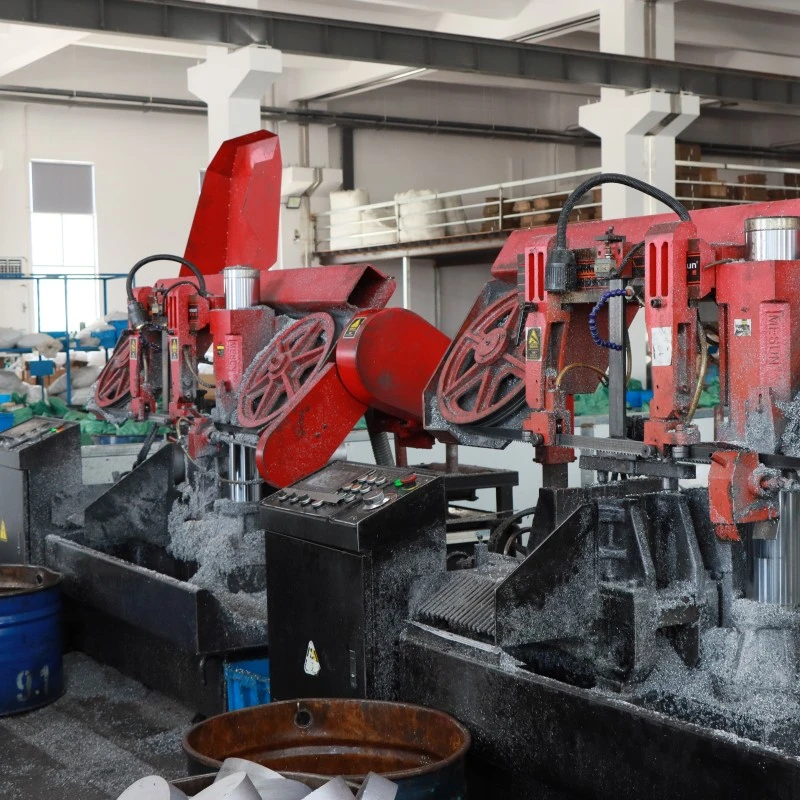

To ensure transparency and build customer confidence, J&W Auto Parts provides real factory production images showing our complete manufacturing capabilities.

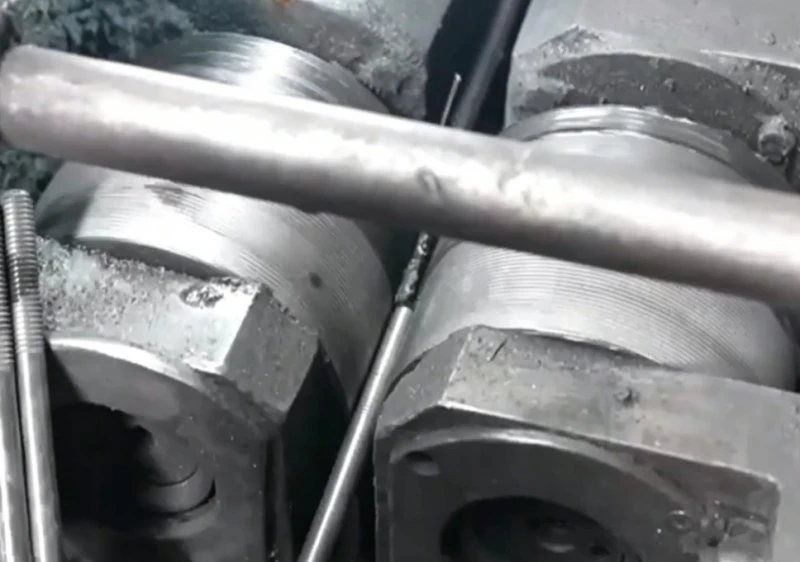

Cold heading production line

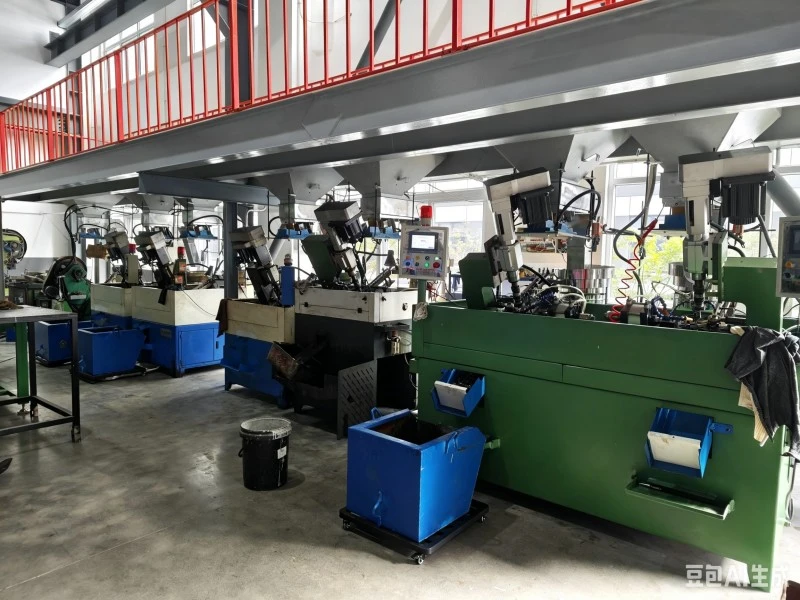

CNC machining process
Automatic electroplating workshop
Thread inspection process
Salt spray testing equipment
Finished product warehouse
J&W Auto Parts provides a full suite of support and logistics services to ensure a smooth procurement experience for every customer. From accurate vehicle fitment guidance to reliable shipping arrangements, we cover all aspects of product delivery and after-sales assistance.
1. Fitment Guidance – We offer professional selection advice based on original vehicle specifications. Our team helps verify thread size, pitch, and seat type to prevent mismatches. The M12x1.5 specification is commonly applicable to European brands (e.g., Volkswagen, Audi, BMW) and certain Japanese modified wheels.
2. Technical Assistance – Our support staff provides installation instructions, torque recommendations, and maintenance tips. We help dealers and end-users reduce installation errors and avoid unnecessary after-sales issues.
3. Packaging Options – Products are shipped in standard export cartons or custom-designed retail packaging per client request. Each bolt is individually protected to prevent surface scratches or corrosion during transit.
4. Shipping & Delivery – We support sea freight, air freight, and express courier services. If customers have their own freight forwarder in China, we can arrange delivery to the designated agent with a complete packing list. Standard specifications are kept in stock to enable rapid dispatch.
With these integrated support and logistics capabilities, J&W Auto Parts ensures that your orders arrive on time, in perfect condition, and with the right technical backing – so you can focus on growing your business with confidence.
1. Source Factory Direct Supply - Own production system with no intermediary markups
2. Large-Scale Production - Multiple cold heading machines operating in parallel to support high-volume order fulfillment
3. Professional Experience - Over a decade of automotive fastener manufacturing experience
4. End-to-End Quality Control - Six inspection procedures from raw material to finished product
5. Global Export Capability - Primary markets include North America, Western Europe, Oceania, and others
6. Technical Support Guarantee - Selection advice and installation guidance to reduce after-sales risks
A: This specification is commonly found on European brand models (such as Volkswagen, Audi, BMW, etc.) and some Japanese modified wheels. Specific compatibility should be confirmed against original wheel bolt specifications and factory manual parameters. If uncertain, it is recommended to measure the thread diameter, pitch, and seat type of the original bolts, or contact our technical support for selection assistance.
A: Yes. J&W Auto Parts supports customization of bolt length, surface finish color, and coating type. After customers provide specific parameters, we can evaluate and arrange sample production. Customization solutions include OEM engraving and brand logo printing.
A: Minimum order quantities vary by specification and material. Standard specification products with existing inventory can accept smaller MOQs; customized specifications require MOQ determination based on process complexity. Please contact the sales team for a tailored quotation.
A: Yes. If you have any doubts about product quality, sample delivery can be arranged. Sample fees and shipping policies are subject to consultation with our sales representative.
A: Measure the thread diameter, thread pitch, seat type, and overall length before replacement.
A: For standard specifications with available inventory, delivery is typically within one week; for non-stock items, the production lead time is generally 30 to 40 days. Lead times for customized specifications depend on order quantity and process requirements.
A: T/T, L/C, and PayPal are supported. Standard orders require 30% deposit with balance paid before shipment; orders under USD 1,000 require full prepayment.
A:Incorrect seat matching may cause uneven contact pressure and affect fastening reliability.
